Color Coated Galvalume Steel Coil PPGL

PPGL steel is a durable, colorful and economical building material. It is the abbreviation of color coated aluminum-zinc plated steel plate, which is based on aluminum-zinc plated steel plate. The aluminum-zinc coated steel is then continuously painted in coil form. Due to its heat resistance and corrosion resistance, it has become a material for various construction purposes, especially roofs and walls.

Classification :

Color Coated Coil

+8615206544514

sales08@hbis-group.com

E-mail

PRODUCT DETAILS

Keywords: Steel Plate, Steel Coil

Color Coated Galvalume Steel Coil PPGL Description

Product Parameters

Product Name	Color Coated Galvalume Steel Coil PPGL
Thickness	0.13mm-0.8mm
Width	600mm-1250mm
Length	Support Customization
Color	According RAL Color Card (Can provide custom pattern)
Paint	PE, SMP, HDP, PVDF
Primer	Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer
Coating Thickness	Top Coat: 10-30mic, Back Paint: 5-25mic

Color Selection

We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.

PPGL Color Coated Coil Advantages

Excellent Corrosion Resistance
Because it contains 55% aluminum, the corrosion resistance of PPGL is much better than that of PPGI, which can greatly extend the service life.
Good Heat Reflectivity
Good heat resistance can keep the building cool in the hot summer.
Weather Resistance
Pre-coated aluminum-zinc steel can withstand severe weather conditions, such as extreme summer, winter or rainfall.
Good Processing Performance
PPGL steel plate is easy to shear, profiling, blanking and other processing.
Beautiful Appearance
They have a pleasing surface finish and aesthetics that look attractive and impressive.

Coating Type

In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester Smp
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.

Scope of Application

Construction industry: such as roof, interior and exterior wall panels, balcony panels, suspended ceilings, partition walls, windows, door panels, etc.
Transportation: For example, car trim panels, train or ship decks, containers, etc.
Electrical equipment: mainly used for making freezers, washing machines, air conditioners and other enclosures. PPGI coils for home appliances have the best quality and the highest production requirements.
Furniture: such as wardrobes, lockers, radiators, lampshades, tables, beds, bookcases, shelves, etc.
Other industries: such as roller shutters, billboards, traffic signs, elevators, whiteboards, etc.

Factory Appearance

Our company is the first wide and thick steel plate production and scientific research base in China. Our company was founded in 1970 and is my country's first wide and thick plate production and scientific research base. We have now become the main base for localization and import substitution of wide and thick steel plates in my country.

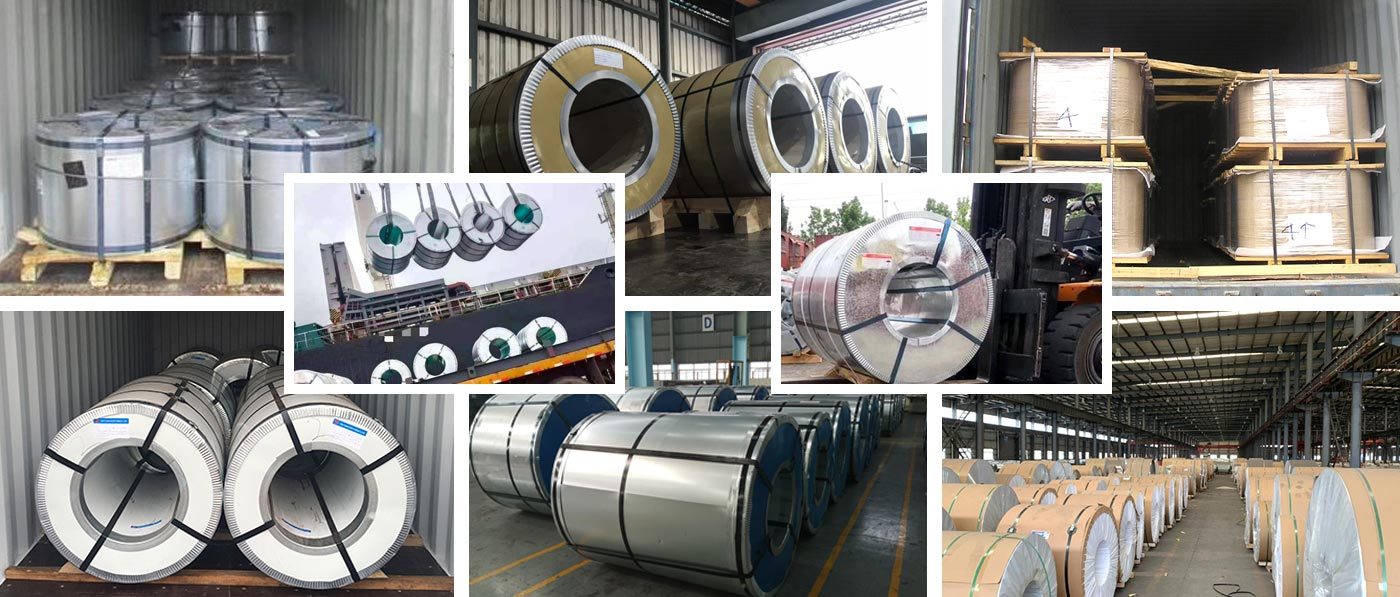

Packing and shipping

It possesses two wide and heavy steel plate production lines including one 4100mm line and one 4200mm line of high specialization, with international first class technological equipment and the comprehensive capacity of annually producing over 5 million tons of molten steel and 3 million tons of steel plate. The total assets are 13.2 billion yuan. The number of employees amounts to more than 10，000. The company covers an area of 7.35 m2. The total area of industrial building at plant site is 4.4 million m2. The steel plate heat treatment technology, extra heavy steel plate production technology and ESR steel production technology are all in the leading position of the same industry.

Customer visit

It has 12 product series including low-alloy high-strength steel plates and alloy structural steel plates, more than 300 steel types, and more than 400 thickness specifications of wide and thick steel plate products. It adopts foreign standards to produce more than 180 varieties. The products are exported to more than 100 countries and regions around the world, including Europe, America, and Asia, and are well received by customers at home and abroad.

Application areas

Products are widely used in water conservancy projects, military equipment, construction industry, aerospace, automobiles, home appliances and other fields. It has scale advantages, resource advantages, integration advantages, technology research and development advantages, capital operation advantages, and has a complete pre-sales, sales and after-sales service system. Positioned to produce and develop high-end wide and thick plates, we continue to innovate and seek transformation, and are willing to provide other hot-rolled plates, medium-thick plates, wire rods, cold-rolled plates, galvanized plates, stainless steel and other steel products to global customers.
