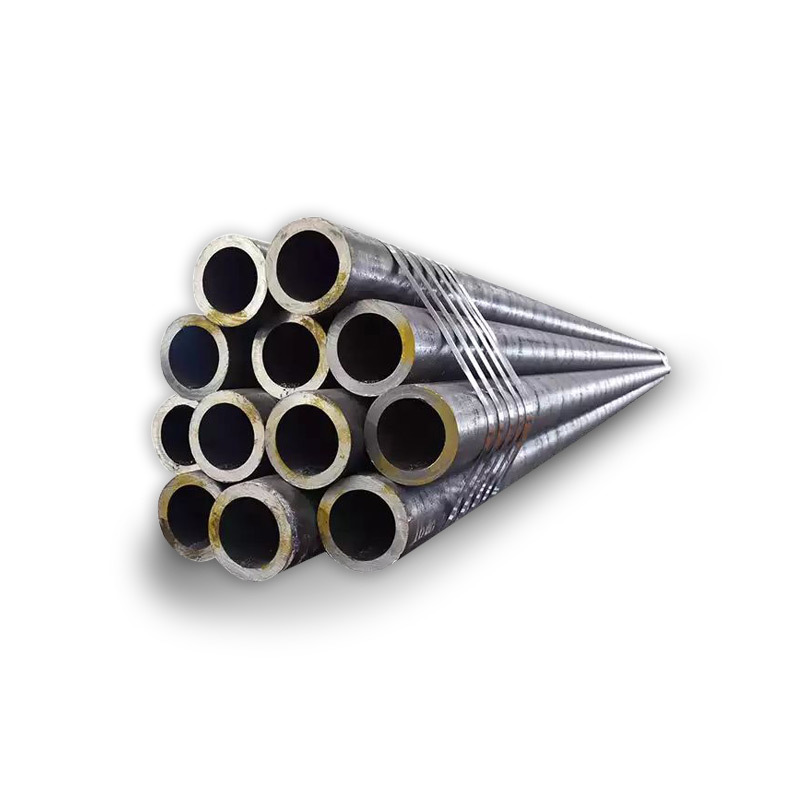

DIN 17175 is suitable for seamless pipes and is used in the construction of boilers, pipelines, pressure vessels and equipment. The maximum temperature can reach 600 ℃. At the same time, under high pressure, the total stress and related fouling conditions can increase or decrease the temperature limit.
DIN 1629 seamless steel pipe its main grades are St37.0, St44.0, St52.0, DIN 1629. Generally, the DIN 1629 standard is not limited to the working pressure value, and the working temperature is limited to below 300 ℃.
EN 10210/S355 Seamless Steel Pipe
Grade S355 is a low carbon manganese-containing steel alloy. This medium-strength carbon steel has both good weldability and good impact resistance. Grade S355 steel is also well suited for sub-zero temperature applications.
EN 10219/S235 Welded Steel Pipe
EN 10219 standard is used to produce pipes, and cold-formed steel pipes EN 10219 S235JR are very suitable for welded structures.

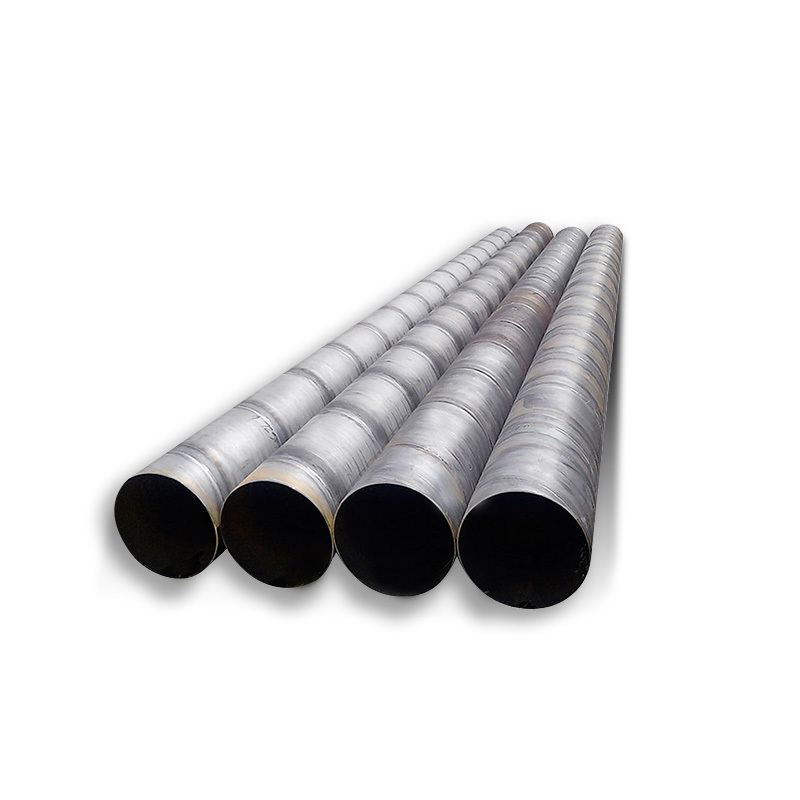

Spiral Submerged Arc Welded Pipe SSAW
The spiral submerged arc welded pipe is made of hot-rolled steel strip as raw material, and is usually made by constant temperature spiral forming and automatic submerged arc welding. The manufacturing process is to roll the steel strip, make the rolling direction at a certain angle to the center direction of the tube, and then form and weld, so the weld is spiral. Can provide API SPEC 5L steel pipe, GB / T3091,GB / T9711-2011,EN10219,ASTM A252 standard steel pipe.
The longitudinal submerged arc welded pipe is made of steel plate as raw material, which is formed by a forming machine, and then double-sided submerged arc welding is carried out. Through this process, the LSAW pipe will have excellent ductility, toughness, uniformity, plasticity and good sealing performance. The production equipment can be produced quickly, easy to replace, and the product specification range of LSAW pipe is large. The production line can produce welded pipe diameter 406-4500mm, wall thickness 8mm-100mm.
Resistance welded pipe ERW is formed by hot rolled coil through forming machine. The skin effect and proximity effect of the high frequency current are used to heat and melt the edges of the tube blank. Pressure welding is carried out under the action of squeeze rollers. Realize production. The production process of welded steel pipes is simple, the production efficiency is high, the varieties and specifications are many, and the equipment is few, but the general strength is lower than that of seamless steel pipes.
Galvanized pipe Galvanized steel pipe, also known as galvanized pipe, is divided into two kinds of hot dip galvanized and electro galvanized. The hot-dip galvanized layer is thick, the coating is uniform, the adhesion is strong, and the service life is long. Zinc is commonly used to galvanize or coat these metal tubes. The galvanizing process for steel pipes involves immersing the metal pipe in a bath containing 450 degrees Fahrenheit molten zinc. After a few minutes, the hot-dip galvanizing process is complete.
